TPREC-FHD Full HD Portable Capture Recorder — Record Master Pocket
TPREC-FHD
New product

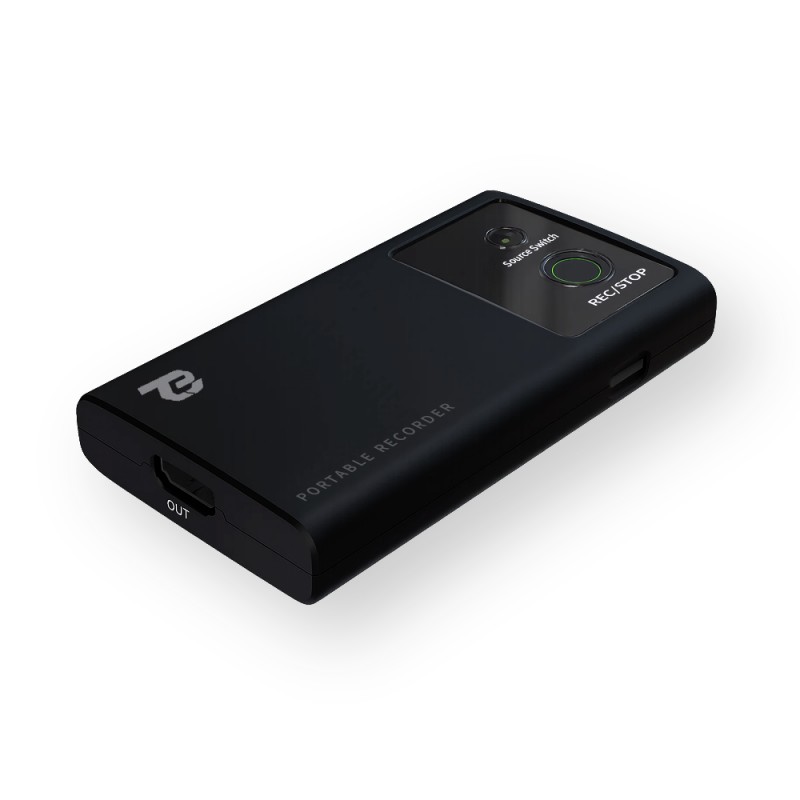

This portable video capture device supports 4K input/output and records up to 1080p60 directly to a microSD card.

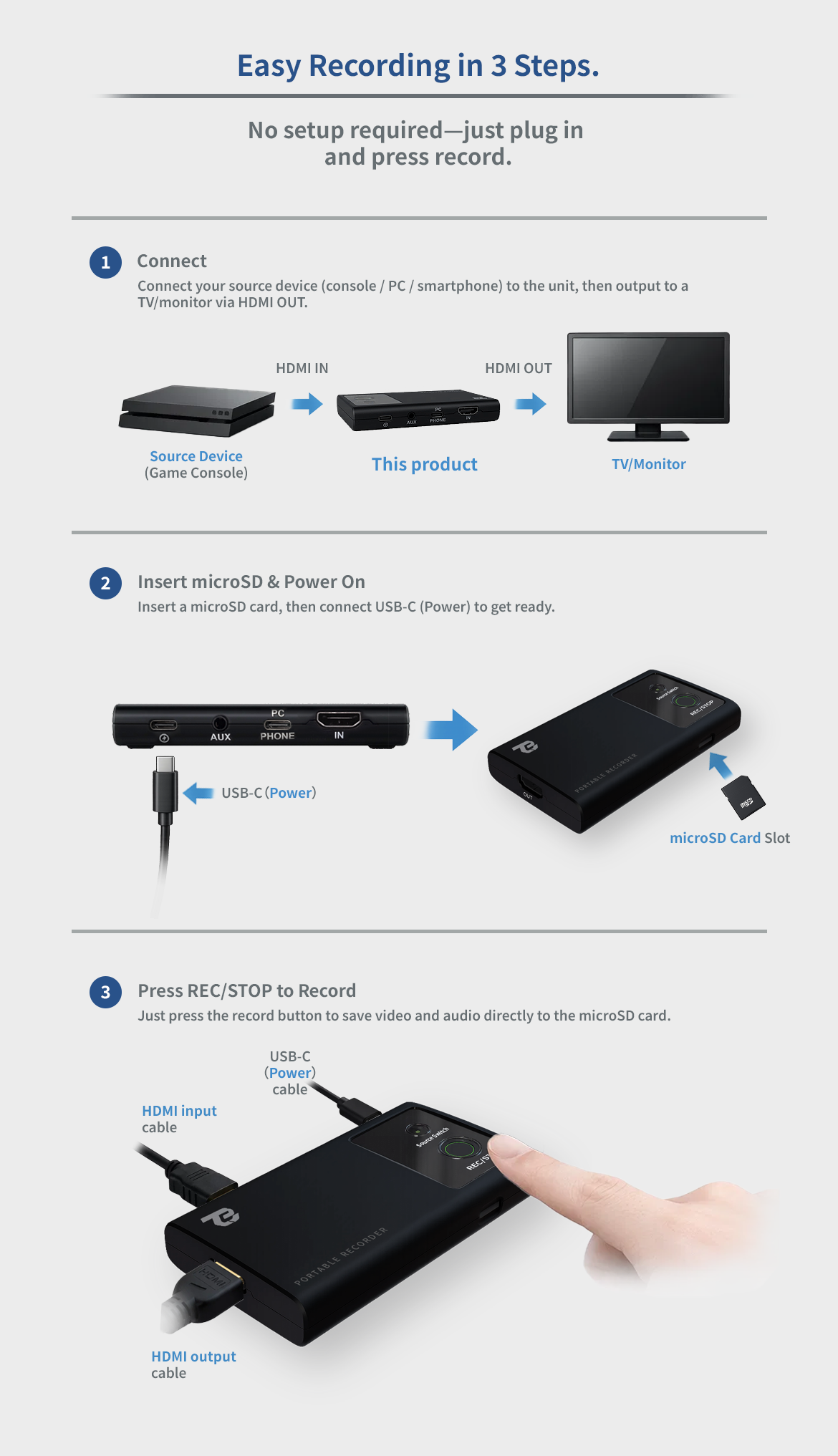

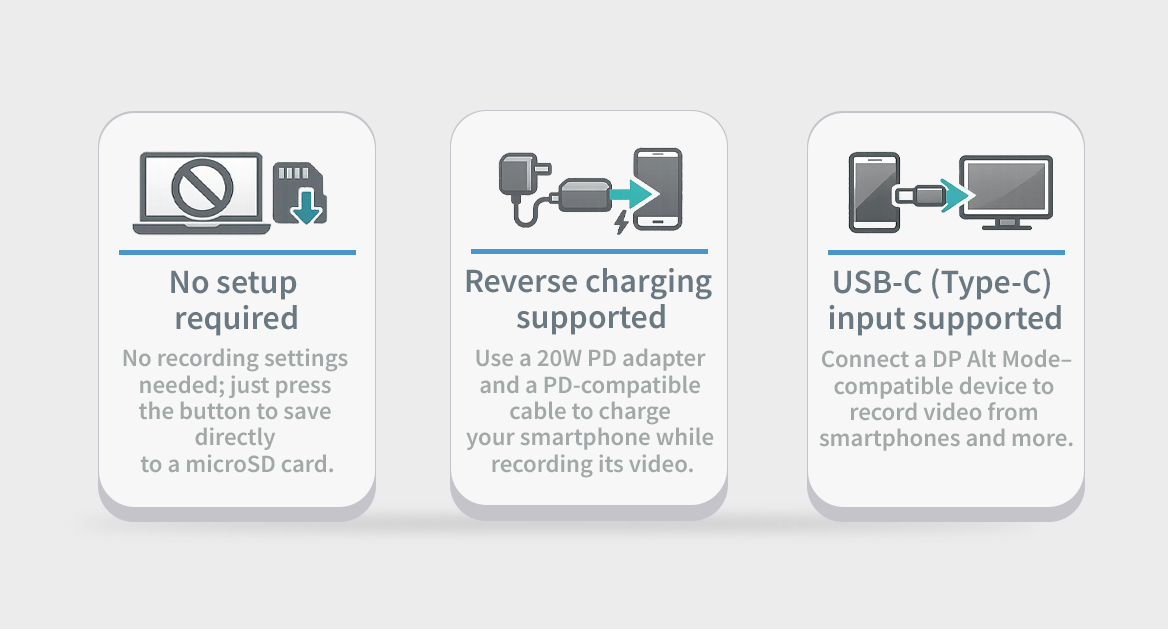

No PC required—record while monitoring in real time via HDMI passthrough output.
It also works with DP Alt Mode–compatible USB-C devices such as PCs and smartphones, allowing you to capture what’s displayed on the device.

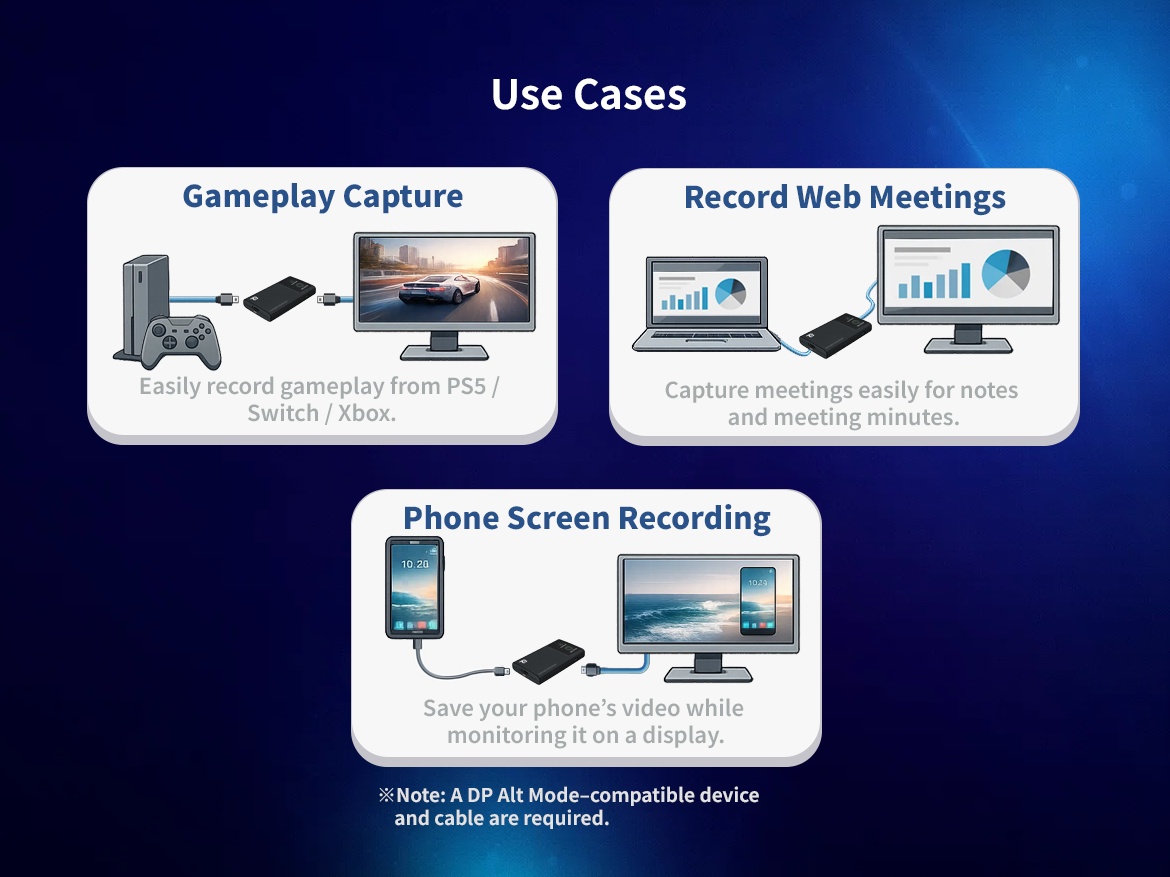

With AUX (3.5mm TRRS) input, you can record headset/mic audio too—ideal for gameplay capture, phone screen recording, and saving presentations or web meetings.
More info
| Model No. | TPREC-FHD | JAN Code | 4533239034219 |

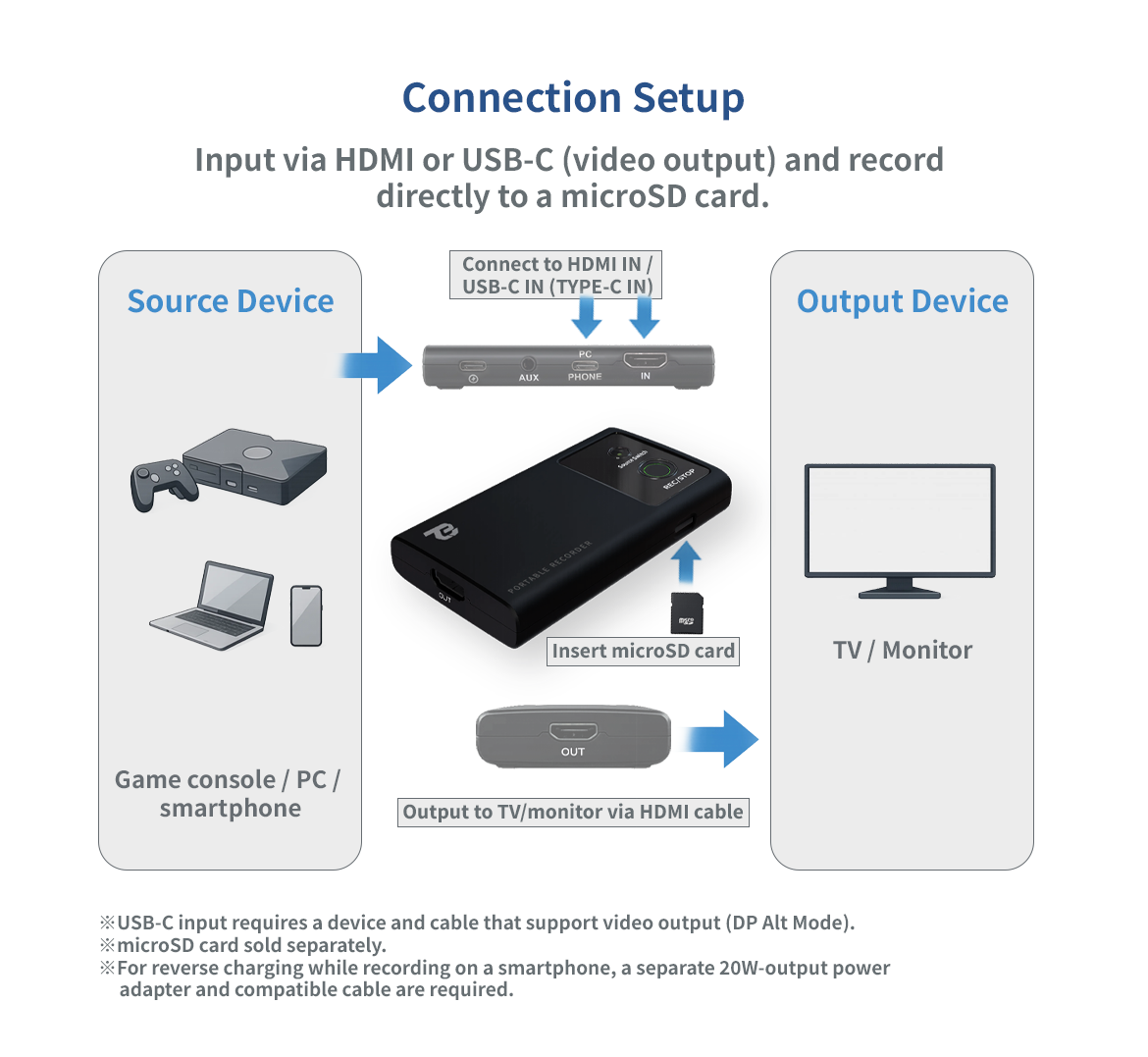

| Video Input | HDMI 2.0, USB-C (DP Alt Mode) |
| Video Output | HDMI 2.0 |
| Max Input Resolution | 4K60 (3840×2160 @ 60fps) *Applies to HDMI and USB-C input |
| Max Output Resolution | 4K60 (3840×2160 @ 60fps) (Passthrough) HDCP 2.2 |
| Recording Resolution | 1080p60 (1920×1080 @ 60fps) |
| Recording Format | H.264, 16Mbps bitrate |
| Audio Format | 48kHz PCM |

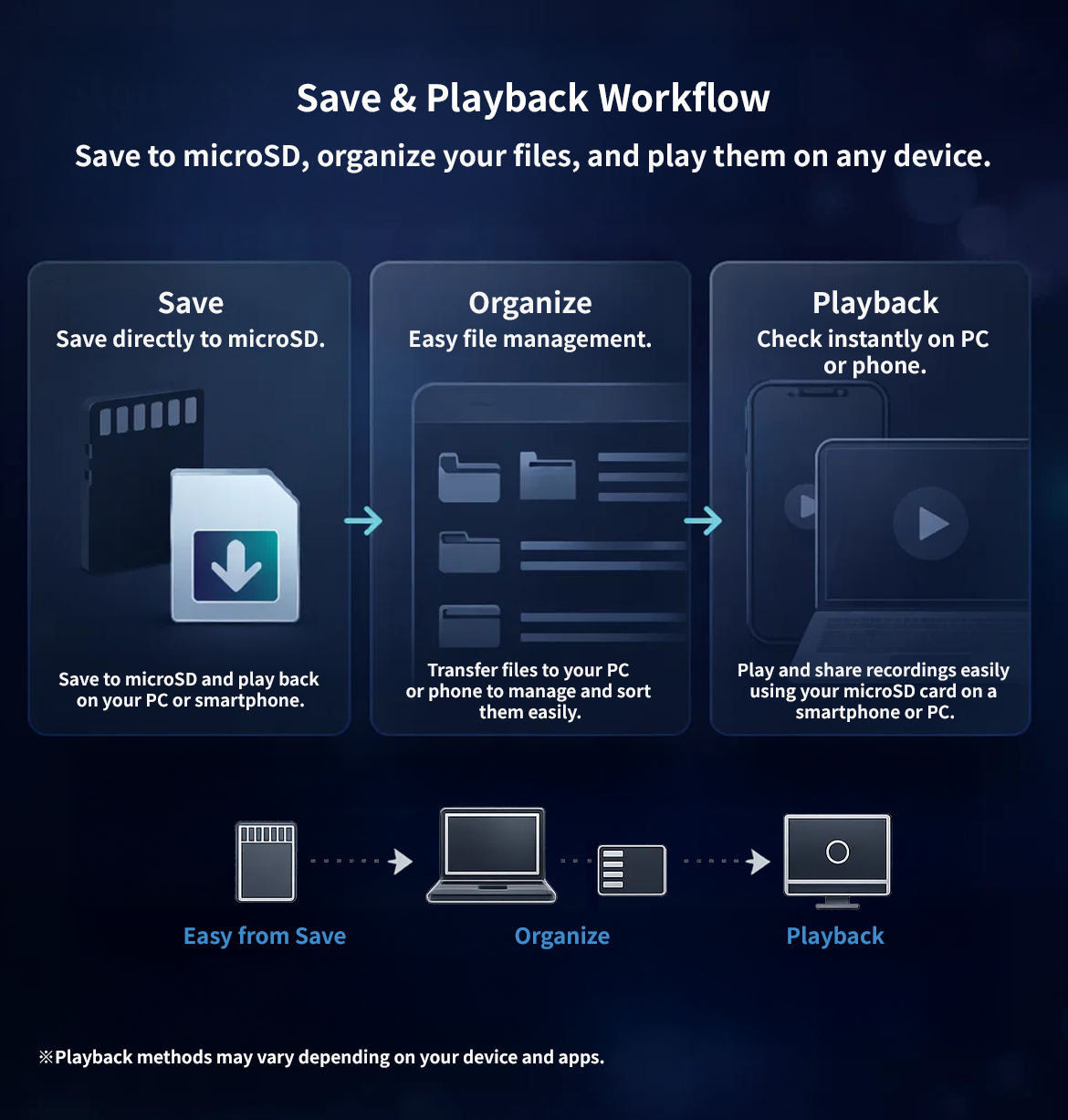

| Storage | microSD Card (Up to 512GB) |
| Max Recording Size per File | FAT32 (4GB), exFAT (16GB), NTFS (16GB) *When a recording reaches the file size limit, a new file is created automatically and recording continues. |
| Power (USB-C) | Device power consumption: 5V2A Reverse charging: Up to 20W *For reverse charging, a separate 20W-output power adapter and USB-C cable are required. |
| HDCP | HDCP 2.2 |

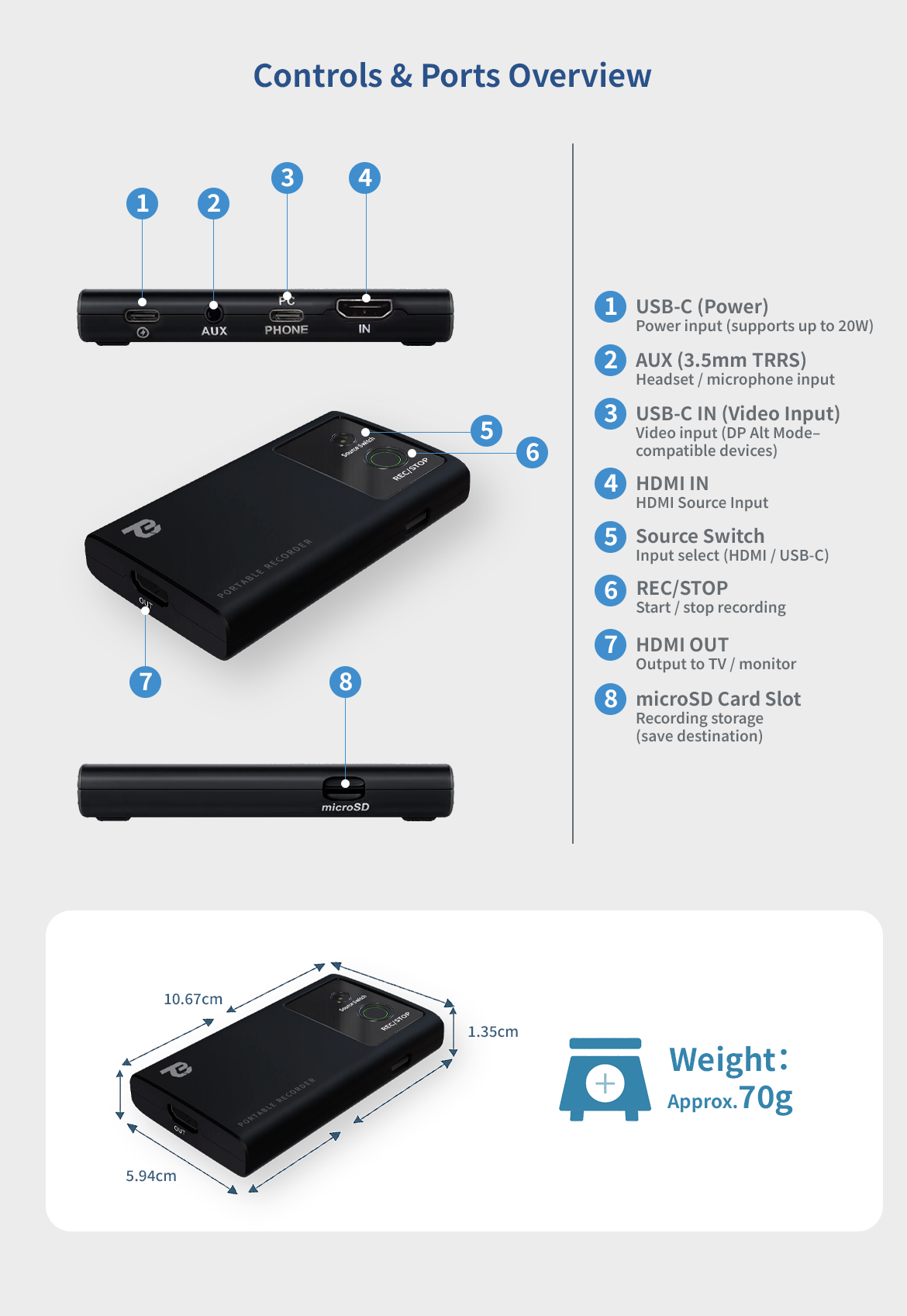

| Dimensions | 10.67cm × 5.94cm × 1.35cm |

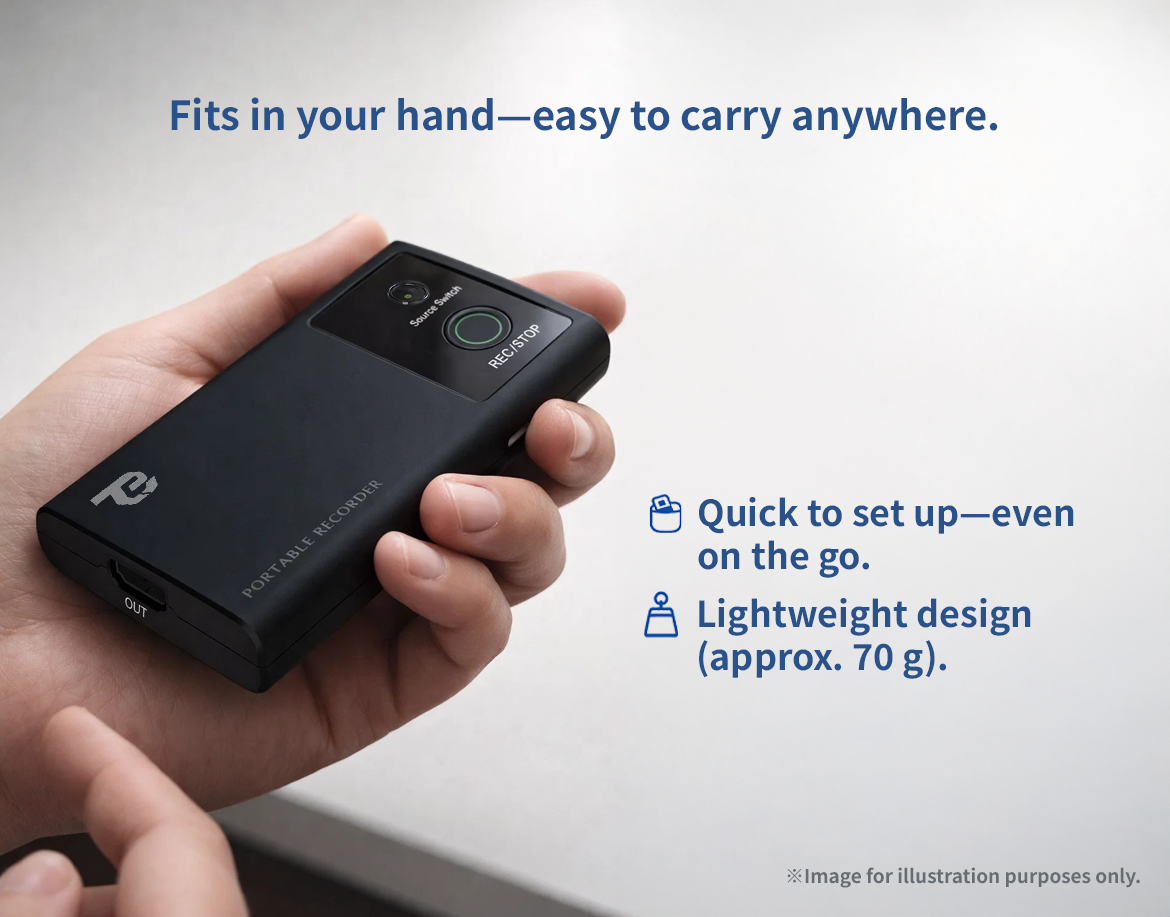

| Weight | Approx. 70g |

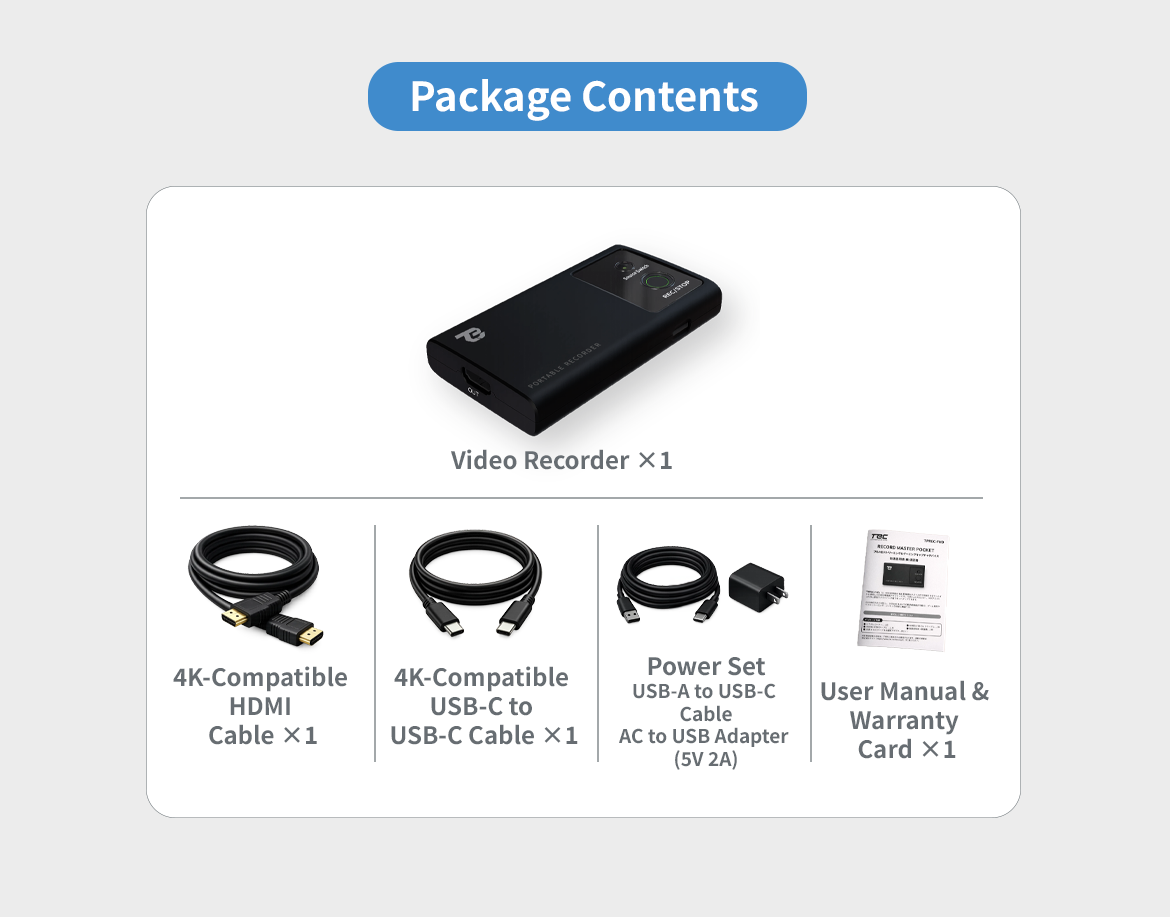

| Included Items | Video Recorder Device, HDMI cable, USB-C to USB-C cable, USB-C power cable, 5V/2A USB AC adapter |
