TMP905X4-4K PlayMaster X4 4K HDR Wi-Fi-Enabled Network Media Player

TMP905X4-4K

New product

The TMP905X4-4K PlayMaster X4 is a versatile network media player that streams stunning 4K HDR content over Wi-Fi. With built-in Bluetooth 5.0, you can pair wireless headphones for immersive, cable-free audio.


Simply insert a USB drive or MicroSD card containing your media into the dedicated slot—and the player will automatically detect your folder structure and loop playback for continuous, hands-free viewing.

More info

TMP905X4-4K TMP905X4-4K TMP905X4-4K TMP905X4-4K TMP905X4-4K TMP905X4-4K TMP905X4-4K TMP905X4-4K TMP905X4-4K




* Applications may become unavailable for use with this product due to updates on the application side, OS version, etc.
* This product does not guarantee the playback of all videos.

   Even if it the corresponding file described, it may not be possible to play it.

* This product can play files with a maximum resolution of 8K, but the HDMI output is 4K.

* We do not guarantee connection with all MicroSD cards, USB memory, and HDD.

* This product is a media player for video playback.

* We do not guarantee the operation of all applications.

* A separate contract may be required to use the streaming service.

* A separate google account is required to install the app.

* The HDMI cable that comes with this product is ver1.4, and it does not support 4K60Hz HDR.

   When using at 4K60Hz or higher, an HDMI ver2.0 cable (sold separately) is required.

* Some streaming services are not supported.

* You need to subscribe to the streaming service separately.

* This product does not have a Japanese keyboard as standard.

   Please download the Japanese input application separately.

* There are innumerable exhaust gaps on the side in consideration of the heat exhaustion of this product. When inserting the microSD card, be careful not to insert it inside.

* There are many holes on the side to improve heat exhaust. When connecting a microSD card, check the orientation and insertion location.




Model no.TMP905X4-4K JAN4533239034202

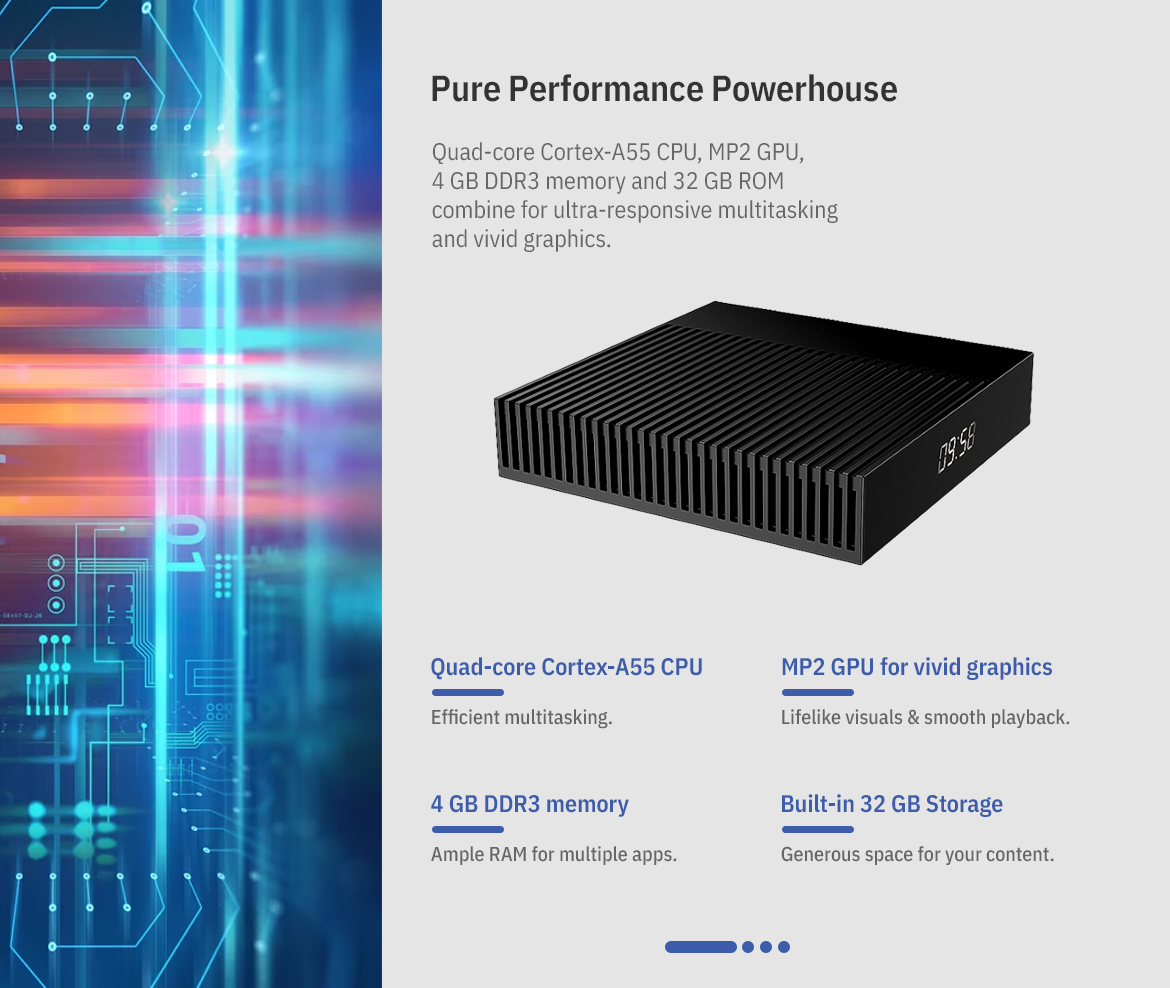

ChipsetCPU: Amlogic S905X4 64-bit quad core
        ARM® Cortex™ A55
GPU: G31™ MP2
RAM4GB DDR
Internal Storage32GB EMMC
WIFI802.11 a/b/g/n/ac;  2.4G / 5G Compatible
Bluetooth5.0
Power SupplyDC 5V/2A
OS VersionAndroid 11
Supported video formats-Equipped with Amlogic Video Engine (AVE) equipped with a dedicated hardware decoder and encoder
・ Video / image playback compatible formats
– VP9 profile-2 up to 8Kx4K @ 24 fps
– MP-10 @ L5.1, up to 8Kx4K @ 24 fps
– AVS2-P2 profile up to 8Kx4K @ 24fps
– H.264 AVC HP @ L5.1 Up to 4Kx2K @ 30fps
– MPEG-4 ASP @ L5 Maximum 1080P @ 60fps (ISO-14496)
– WMV / VC-1 SP / MP / AP up to 1080P @ 60fps
– AVS-P16 (AVS +) up to 1080P @ 60fps
– MPEG-2 MP / HL (ISO-13818) up to 1080P @ 60fps
– MPEG-1 MP / HL (ISO-11172) up to 1080P @ 60fps
– RealVideo8 / 9/10 Maximum 1080P @ 60fps
– Supports subtitle video playback in multiple languages and formats
– Supports JPEG thumbnails, scaling, rotation and transition effects
– * Supports .mkv, * .wmv, * .mpg, * .mpeg, * .dat, * .avi, * .mov, * .iso, * .mp4, * .rm, * .jpg file formats
Supported audio formatsSupports 5.1 down mixing playback of MP3, AAC, WMA, RM, FLAC, Ogg

Compatible with AC3 , E-AC3, DTS, DTS-HD, AAC

3.5mm stereo mini plug (SPDIF / IEC958 standard) PCM output Maximum 384KHz x 32-bit 16ch or 96KHz x 32-bit 32ch TDM / PCM output mode and maximum 384KHz x 32-bit 16ch I2S output support

Built-in stereo audio DAC
Supported image formatsHD JPEG, BMP, GIF, PNG, TIF

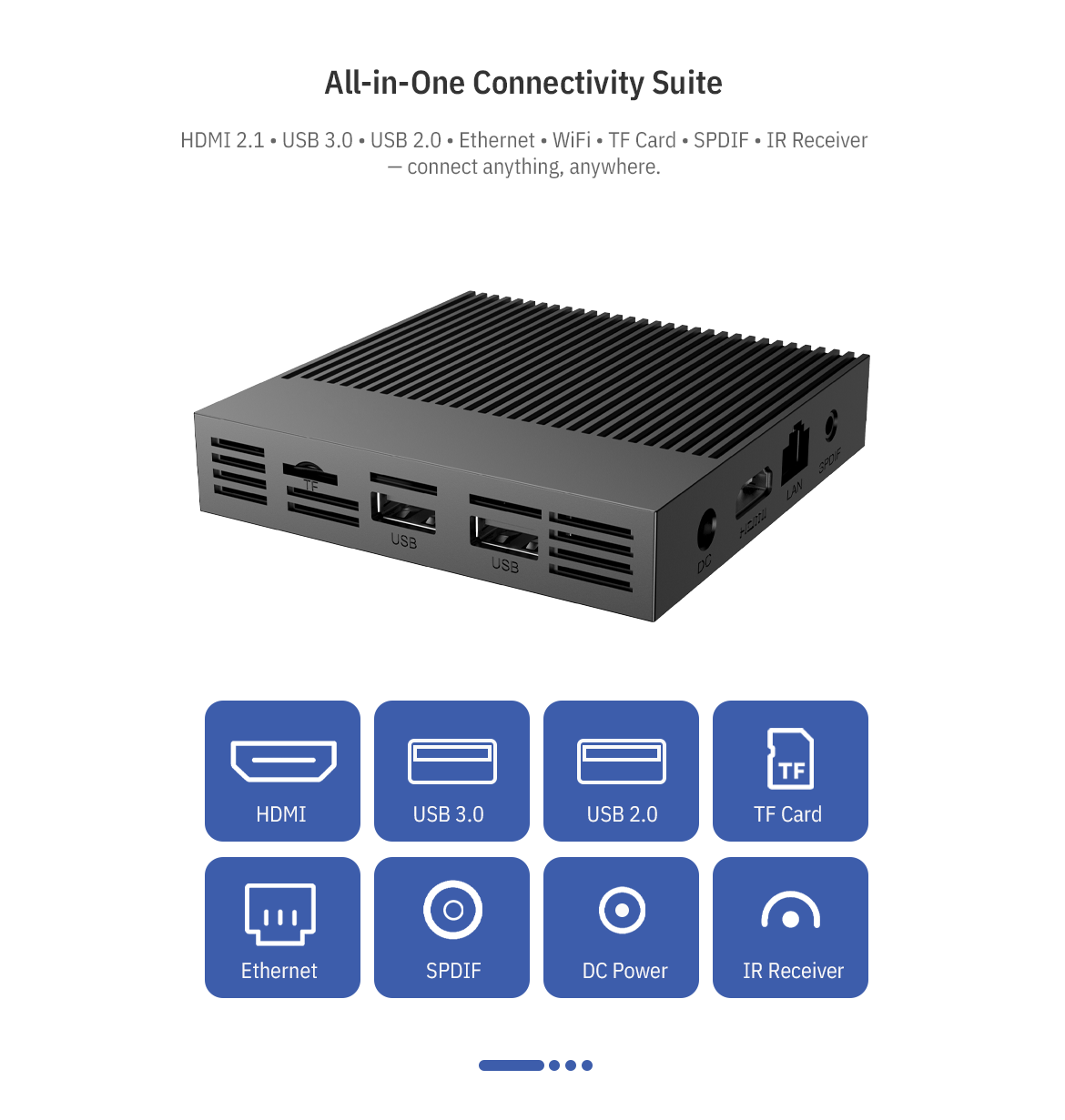

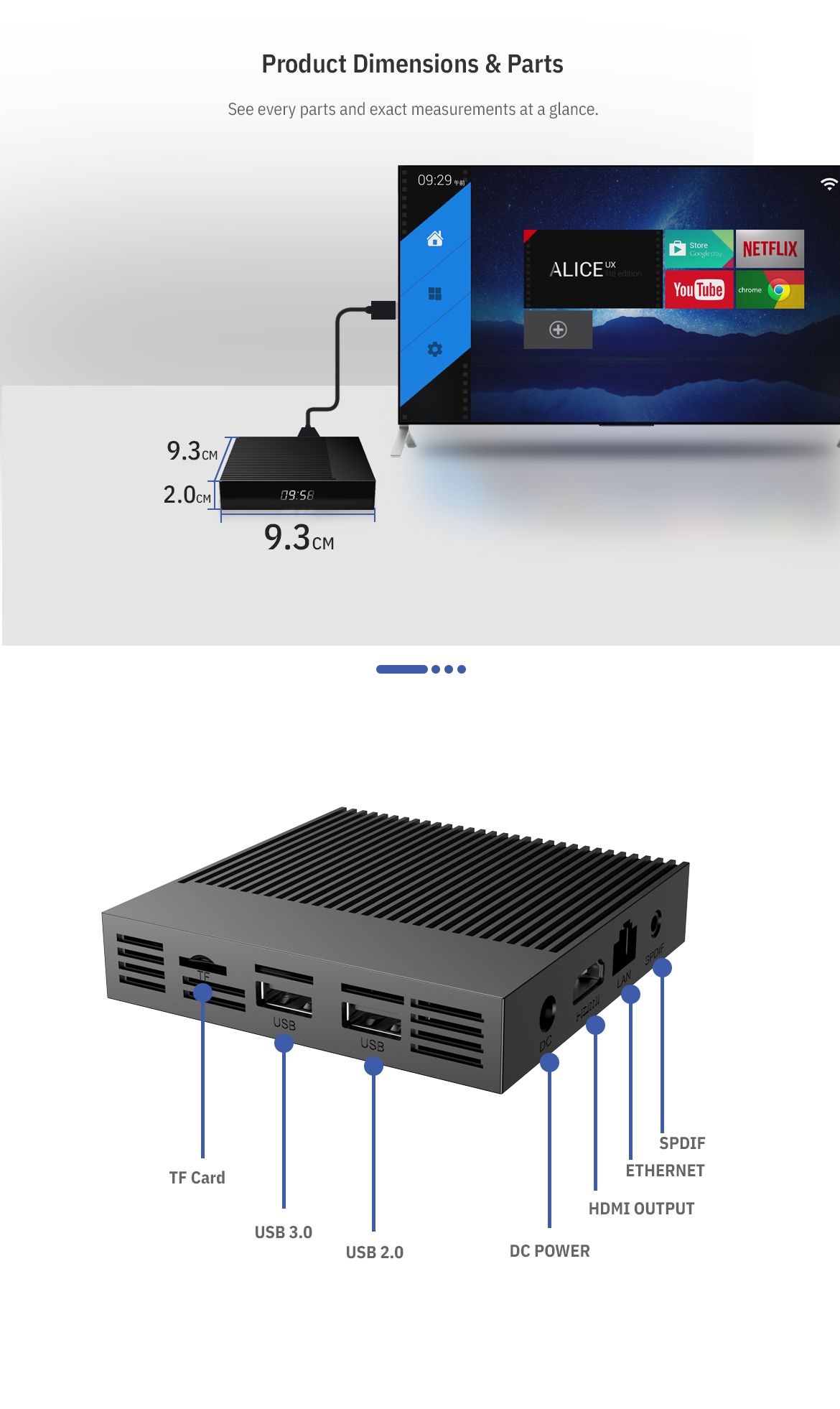

Input/Output Ports
HDMI x1HDMI 2.1, HDMI CEC compatible,
HDR up to 4K60 output
USBポートUSB3.0 × 1 、USB2.0 × 1
Infrared receiver x 1Remote control receiver
RJ45 terminal x 1Ethernet: Supports 10M / 100M / 1000M
MicroSD card slot x 1Supports up to 64GB


Contents
--Media player body
--HDMI cable (HDMI 1.4)

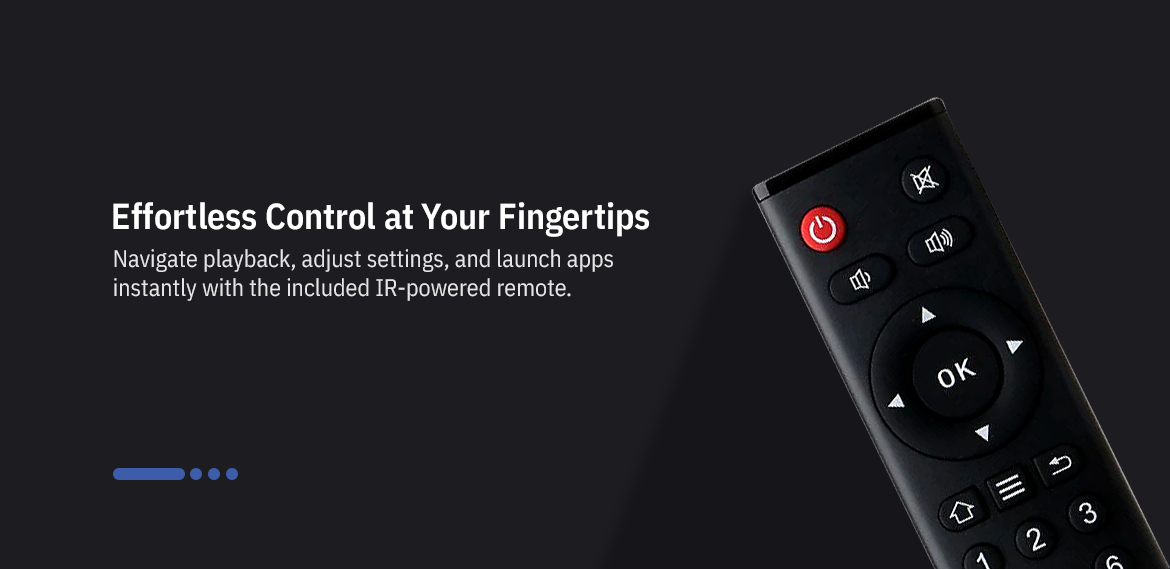

--Remote controller
--Instruction manual and warranty card
--Power AC adapter
